Service Pigtail
Check for Terminal Part Numbers

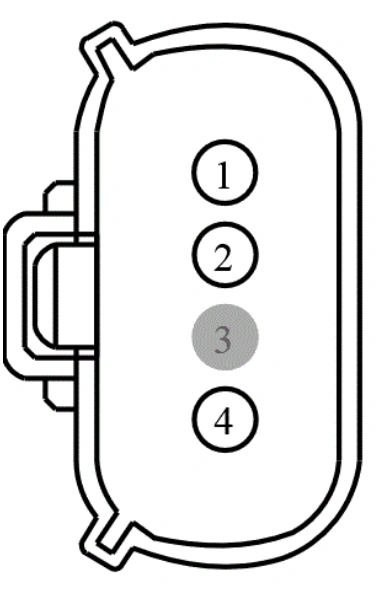

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLF58 (YE-OG) | 20 | RELAY - FOG LAMPS REAR | |
2 | CLS10 (GN-BN) | 20 | CTRL MOD. - REVERSE LEFT OR COMMON | |
3 | * | * | Not Used | |
4 | GD301 (BK-BU) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT |
Available Pigtail Kits
