Connector End View C435 - Fuel Tank Pressure (Ftp) Sensor — OEM Connector End Views · Reference 3948

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number 3U2Z-14S411-DGAB

WPT-1373 Gauge:

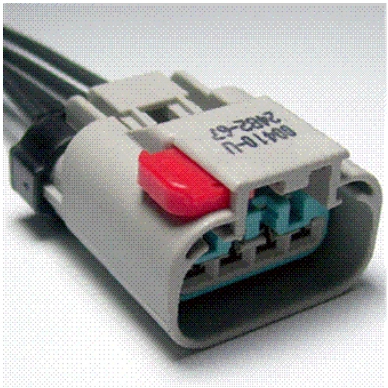

Connector End View C435 - Fuel Tank Pressure (Ftp) Sensor — original illustration 1, reference 3948Original colors & callouts · Select to enlarge

16

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses

Fuel Pump/Sending Unit

Module - Fuel Pump Driver

Sensor - Fuel Level

Service Part Number:

Pigtail Kit Part Number

3U2Z-14S411-DGAA

WPT-709

Gauge:

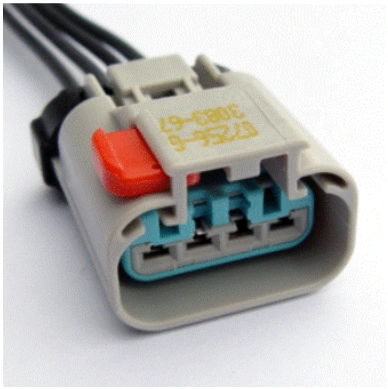

Connector End View C435 - Fuel Tank Pressure (Ftp) Sensor — original illustration 2, reference 3948Original colors & callouts · Select to enlarge

14

Pin material:

Tin

Cavities:

4

Vehicle Uses

Control - Engine Air Shutoff

Fuel Pump/Sending Unit

CONNECTOR VIEWS > CONNECTOR END VIEW C435 - FUEL TANK PRESSURE (FTP)

SENSOR
