Connector End View C433 - Fuel Pump (Fp) Module

OEM Connector End Views

Source configuration appliesSource reference 3,947HTML edition

← Chapter contents Manual collection

Connector:C433

Description

FUEL PUMP (FP) MODULE

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

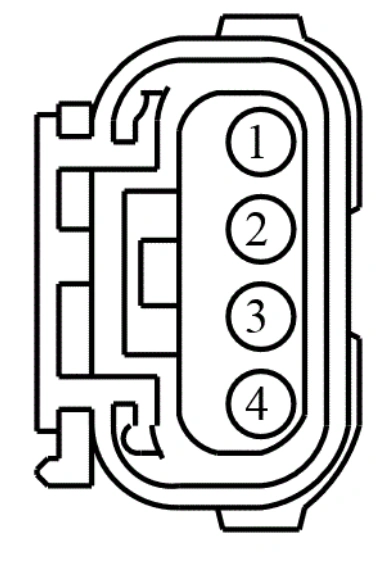

Connector End View C433 - Fuel Pump (Fp) Module — original illustration 1, reference 3947Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RMC32 (GN-BU)	18	CTRL MOD. - SENSOR FUEL LEVEL
2	VMC11 (YE-VT)	18	SENSOR - FUEL LEVEL (FLI)
