Switch - Reverse Park Aid

CONNECTOR VIEWS > CONNECTOR END VIEW C428 - LUGGAGE COMPARTMENT

LAMP

Connector:C428

Description

LUGGAGE COMPARTMENT LAMP

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

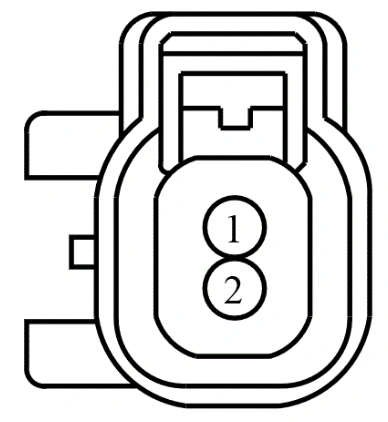

Connector End View C428 - Luggage Compartment Lamp — original illustration 1, reference 3945Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR
