Connector End View C426 - Rear Wheel Speed Sensor RH — OEM Connector End Views · Reference 3943

See Below

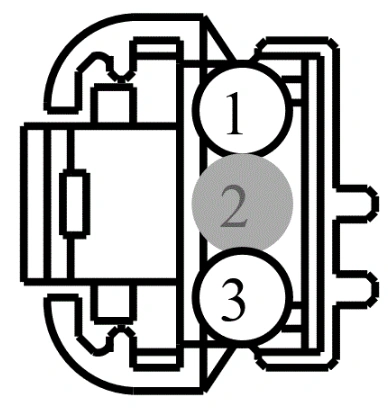

Connector End View C426 - Rear Wheel Speed Sensor RH — original illustration 1, reference 3943Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR
2	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:

WPT-984 3U2Z-14S411-BXAB

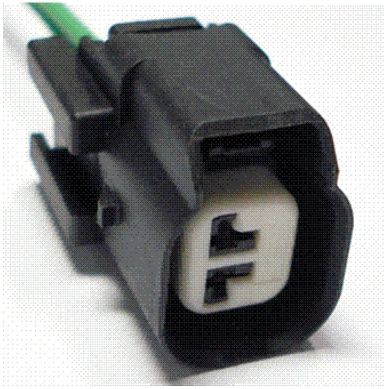

Connector End View C426 - Rear Wheel Speed Sensor RH — original illustration 2, reference 3943Original colors & callouts · Select to enlarge

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses

A/C Compressor Clutch
