Connector End View C415 - Rear Lamp Assembly RH

OEM Connector End Views

Source configuration appliesSource reference 3,940HTML edition
← Chapter contentsManual collection

Pin material:

Silver

Cavities:

6

Vehicle Uses

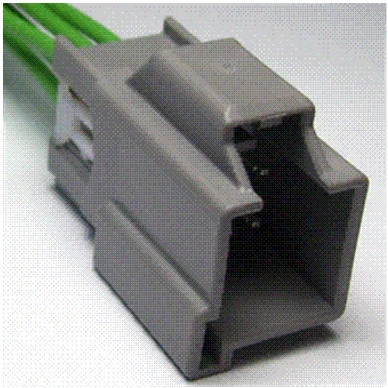

Connector End View C415 - Rear Lamp Assembly RH — original illustration 1, reference 3940Original colors & callouts · Select to enlarge

Connector - Inline

Element - Heated Seat

Inverter - DC to AC

Lamp - CHMSL (Center High Mount Stop Lamp)

Lamp - Courtesy - Footwell

Lamp - License

Lamp - Park/Turn/Stop

Lamp - Top Finish Panel

Mating Connector WPT-962

Motor - Adjustable Pedal

Switch - Gear Shift Select/Neutral Safety

Switch - Multifunction

CONNECTOR VIEWS > CONNECTOR END VIEW C415 - REAR LAMP ASSEMBLY RH

Connector:C415

Description

REAR LAMP ASSEMBLY RH

Color

GY

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Ford_Mustang_all_2015-2017.pdf · source reference 3940

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
