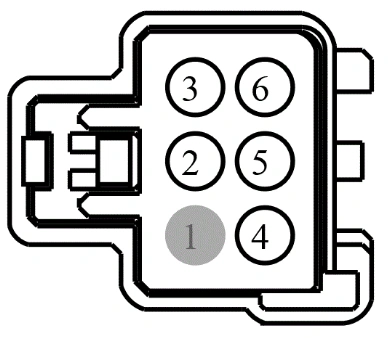

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
3 | CLS23 (GY-OG) | 22 | CTRL MOD. - TURN LAMP LEFT REAR | |
4 | GD301 (BK-BU) 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | ||
5 | CLS54 (BU-OG) | 22 | LAMP - TURN REAR RIGHT # SIGNAL OUT | |
6 | CLS44 (VT-BN) | 22 | CTRL MOD. - STOP |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-1299 | Service Part Number: 3U2Z-14S411-NBB Gauge: 18 |
