Connector End View C406 - Inline

OEM Connector End Views

Source configuration appliesSource reference 3,937HTML edition
← Chapter contentsManual collection

Harness 14A005

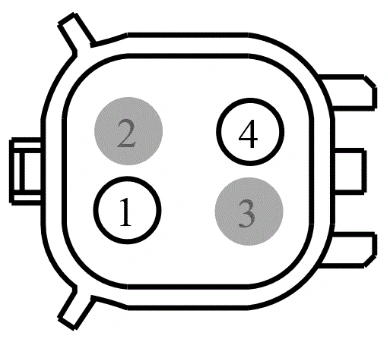

Connector End View C406 - Inline — original illustration 1, reference 3937Original colors & callouts · Select to enlarge

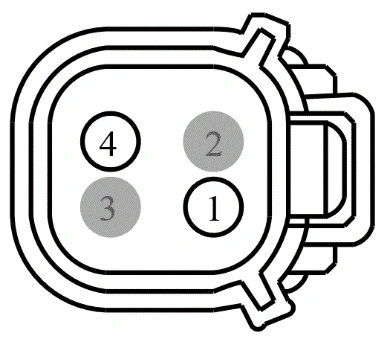

Connector End View C406 - Inline — original illustration 2, reference 3937Original colors & callouts · Select to enlarge

Pin

Circuit

Gauge

Qualifier

1

CBK02 (GN)

16

2

*

*

3

*

*

4

CE114 (GN-BU)

16

Available Pigtail Kits

Pigtail Kit Part Number Service Part Number:
