Connector End View C405 - Inline — OEM Connector End Views · Reference 3934

Module - Radio Power Antenna

Relay - Starter Motor

Switch - Park Brake

Terminal - Rear Window Defroster Grid

Pigtail Kit Part Number Service Part Number:

WPT-434 3U2Z-14S411-MFA

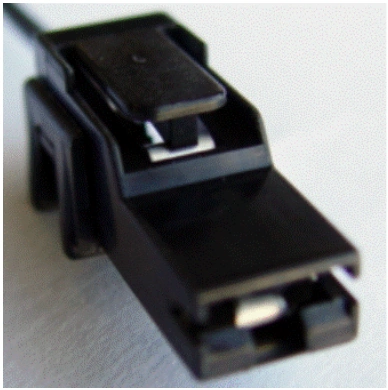

Connector End View C405 - Inline — original illustration 1, reference 3934Original colors & callouts · Select to enlarge

Gauge:

16 18

Pin material:

Tin

Cavities:

1

Vehicle Uses

Lamp - Map

CONNECTOR VIEWS > CONNECTOR END VIEW C405 - INLINE

InlineC405

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 14A005

FEMALE

Harness 13412

Ford_Mustang_all_2015-2017.pdf · source reference 3934
