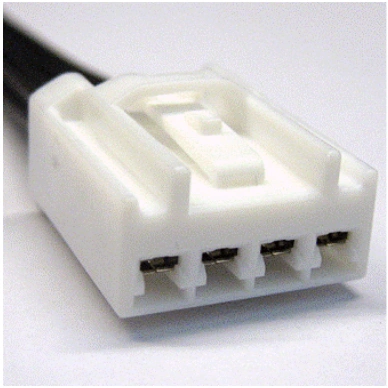

Connector End View C402a - Heated Rear Window Element — original illustration 1, reference 3932Original colors & callouts · Select to enlarge

4

Vehicle Uses

Sensor - Oil Temperature

Sensor - Power Steering Pressure

Sensor - Purge Flow

Switch - Gear Shift Select/Neutral Safety

CONNECTOR VIEWS > CONNECTOR END VIEW C402A - HEATED REAR WINDOW

ELEMENT

Connector:C402A

Description

HEATED REAR WINDOW ELEMENT

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below
