Connector End View C402a - Heated Rear Window Element — OEM Connector End Views · Reference 3933

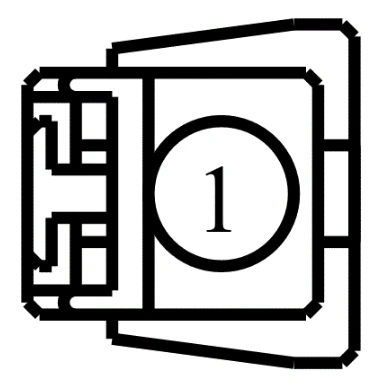

Connector End View C402a - Heated Rear Window Element — original illustration 1, reference 3933Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CRD17 (GY)	10	RELAY - HEATER MIRROR

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-KBA

Pigtail Kit Part Number

Gauge:

WPT-371

10

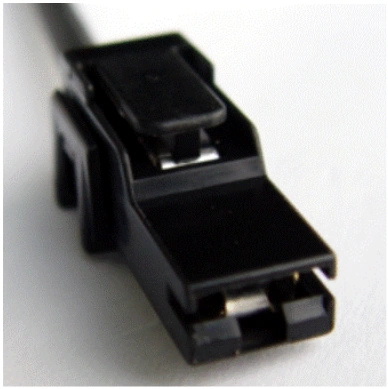

Connector End View C402a - Heated Rear Window Element — original illustration 2, reference 3933Original colors & callouts · Select to enlarge

Pin material:

Tin

Cavities:

1

Vehicle Uses

Cigar Lighter

Horn

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Isolater Antenna
