Check for Terminal Part Numbers

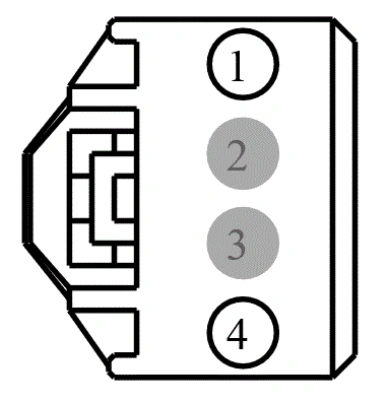

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME12 (BN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | RME12 (BN-BU) 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-912 | Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: |
