CONNECTOR VIEWS > CONNECTOR END VIEW C481 - REAR SIDE MARKER LAMP

LH

Connector:C481

Description

REAR SIDE MARKER LAMP LH

Color

GY

Harness

13412

Base Part #

part# N/A

Service Pigtail

See Below

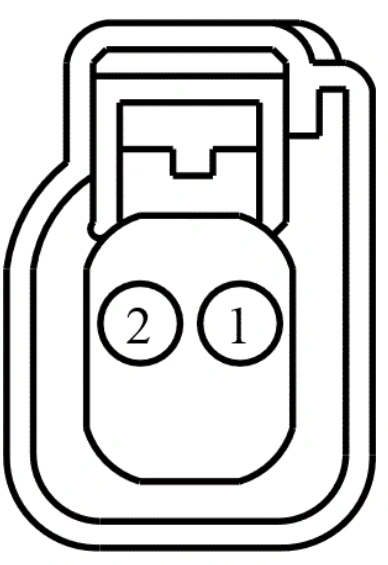

Connector End View C481 - Rear Side Marker Lamp LH — original illustration 1, reference 3956Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

Ford_Mustang_all_2015-2017.pdf · source reference 3956
