CONNECTOR VIEWS > CONNECTOR END VIEW C501B - DRIVER DOOR MODULE

(DDM)

Connector:C501B

Description

DRIVER DOOR MODULE (DDM)

Color

BK

Harness

14631

Base Part #

part# N/A

Service Pigtail

Not Available

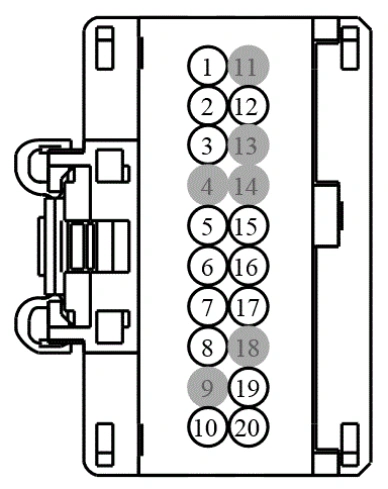

Connector End View C501b - Driver Door Module (Ddm) — original illustration 1, reference 3973Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPS15 (VT-WH)

22

SWITCH - MEMORY DRIVER P1

Ford_Mustang_all_2015-2017.pdf · source reference 3973

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
