Connector End View C505 - Front Door Lock Switch LH

OEM Connector End Views

Source configuration appliesSource reference 3,975HTML edition
← Chapter contentsManual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C505 - FRONT DOOR LOCK SWITCH

LH

Connector:C505

Description

FRONT DOOR LOCK SWITCH LH

Color

BK

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

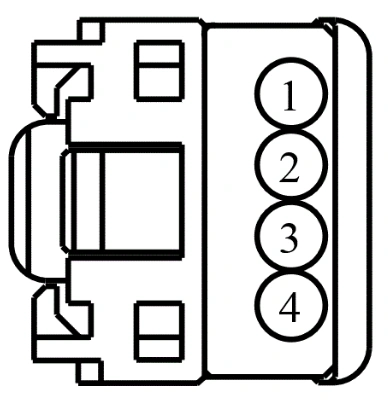

Connector End View C505 - Front Door Lock Switch LH — original illustration 1, reference 3975Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBP23 (BN-YE)

22

FUSE - 23 OR CIRCUIT BREAKER

2

CPK23 (YE-VT)

22

SWITCH - HANDLE UNLOCK DRIVER

Ford_Mustang_all_2015-2017.pdf · source reference 3975
