CONNECTOR VIEWS > CONNECTOR END VIEW C513 - FRONT DOOR MIDWOOFER

TWEETER SPEAKER LH

Connector:C513

Description

FRONT DOOR MIDWOOFER TWEETER SPEAKER LH

Color

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

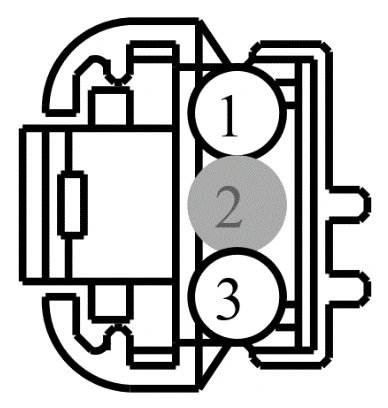

Connector End View C513 - Front Door Midwoofer Tweeter Speaker LH — original illustration 1, reference 3977Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME15 (GN-BU)	18	CTRL MOD. - AUDIO # SPEAKER LEFT MIDDLE +
2	*	*	Not Used
