Connector End View C518 - Driver Door Window Regulator Motor

OEM Connector End Views

Source configuration appliesSource reference 3,979HTML edition
← Chapter contentsManual collection

Color

BK

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

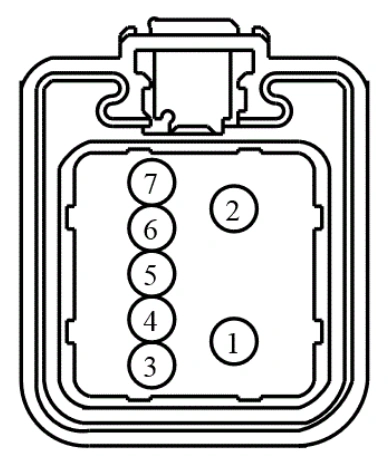

Connector End View C518 - Driver Door Window Regulator Motor — original illustration 1, reference 3979Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SBB11 (BU-RD)

14

FUSE - 11 OR CIRCUIT BREAKER

2

GD233 (BK)

14

GROUND - COWL SIDE/PILLAR A LEFT

3

CBP23 (BN-YE)

22

FUSE - 23 OR CIRCUIT BREAKER

4

CPW11 (BU-GY)

22

SWITCH - POWER WINDOW DRIVER # DRIVER UP
