Connector End View C518 - Driver Door Window Regulator Motor — OEM Connector End Views · Reference 3978

RME15 (GY-BU)

CTRL MOD. - AUDIO # SPEAKER LEFT MIDDLE -

Available Pigtail Kits

Service Part Number:

8U2Z-14S411-LA

Gauge:

18

Pin material:

Pigtail Kit Part Number

Silver

WPT-911

Cavities:

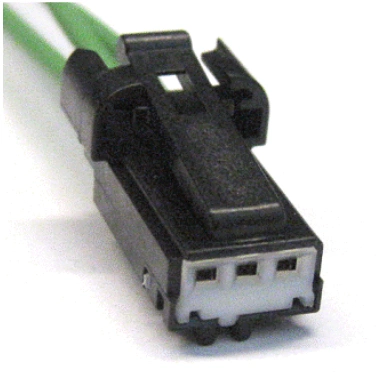

Connector End View C518 - Driver Door Window Regulator Motor — original illustration 1, reference 3978Original colors & callouts · Select to enlarge

3

Vehicle Uses

Fuse Panel Junction Block

Lamp - Ambient Lighting

Lamp - Front Park

Lamp - Map

Lamp - Park/Turn

Lamp - PRNDL Indicator

Lamp - Roof Marker

Module - Driver Door

Sensor - Speed

Switch - Ambient Lighting Dimmer

CONNECTOR VIEWS > CONNECTOR END VIEW C518 - DRIVER DOOR WINDOW

REGULATOR MOTOR

Connector:C518

Description

DRIVER DOOR WINDOW REGULATOR MOTOR
