Connector End View C520 - Exterior Mirror LH — OEM Connector End Views · Reference 3980

4 CPW34 (BU) 22 CTRL MOD. - WINDOW MOTOR DRIVER # UP 5 CPW10 (YE-VT) 22 SWITCH - POWER WINDOW DRIVER # DRIVER DOWN 5 CPW35 (GN) 22 CTRL MOD. - WINDOW MOTOR DRIVER # DOWN 6 CPW73 (GN-RD) 22 CTRL MOD. - POWER WINDOW GLOBAL DOWN 7 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER # AJAR

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-ASA

Pigtail Kit Part Number

Gauge:

WPT-1209

12 18

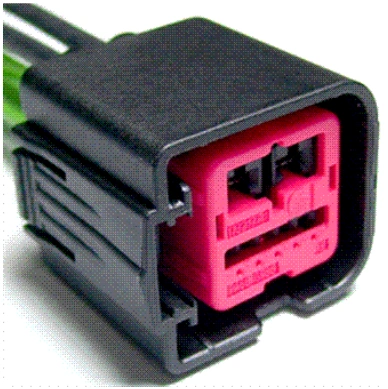

Connector End View C520 - Exterior Mirror LH — original illustration 1, reference 3980Original colors & callouts · Select to enlarge

Pin material:

Tin & Silver

Cavities:

7

Vehicle Uses

Motor - Power Window - LH - Front

Motor - Power Window - LH - Rear

Motor - Power Window - RH - Front

Motor - Power Window - RH - Rear

CONNECTOR VIEWS > CONNECTOR END VIEW C520 - EXTERIOR MIRROR LH

Connector:C520
