Connector End View C523 - Front Door Woofer Speaker LH

OEM Connector End Views

Source configuration appliesSource reference 3,983HTML edition

← Chapter contents Manual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C523 - FRONT DOOR WOOFER

SPEAKER LH

Connector:C523

Description

FRONT DOOR WOOFER SPEAKER LH

Color

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

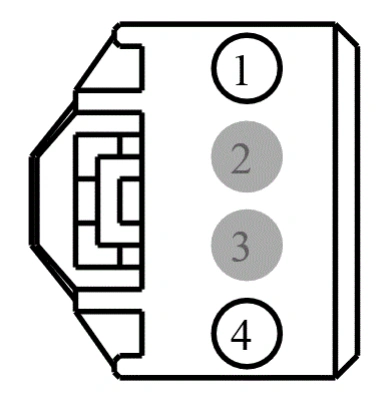

Connector End View C523 - Front Door Woofer Speaker LH — original illustration 1, reference 3983Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME07 (WH)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +
