Connector End View C525 - Front Door Latch Release Motor LH — OEM Connector End Views · Reference 3986

CPL30 4 22 SWITCH - LATCH DRIVER # UNLOCK (BU-BN) 5 GD233 (BK) 20 GROUND - COWL SIDE/PILLAR A LEFT RPL61 CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK 5 22 (BN-GN) DRIVER 6 * * Not Used CPL11 7 14 CTRL MOD. - DOOR LOCK # ALL LOCK (GY-BN) CPL51 8 14 CTRL MOD. - DOOR LOCK # DRIVER UNLOCK (BU-GN)

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-MBB

Pigtail Kit Part Number Gauge:

WPT-1366 16

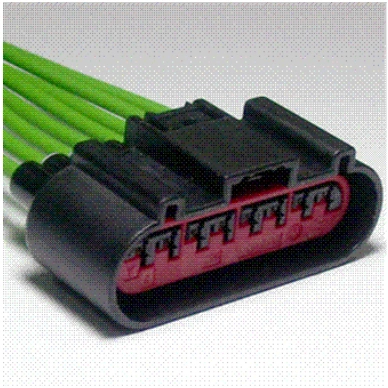

Connector End View C525 - Front Door Latch Release Motor LH — original illustration 1, reference 3986Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

8

Vehicle Uses

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Module - Liftgate
