Connector End View C541 - Front Door Lock Switch LH

OEM Connector End Views

Source configuration appliesSource reference 3,989HTML edition
← Chapter contentsManual collection

Color

BK

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

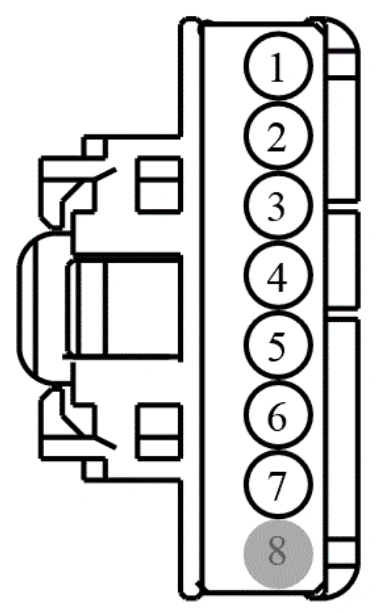

Connector End View C541 - Front Door Lock Switch LH — original illustration 1, reference 3989Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPK23 (YE-VT)

22

SWITCH - HANDLE UNLOCK DRIVER

2

CPK19 (BU-GN)

22

SWITCH - LOCK DRIVER

Ford_Mustang_all_2015-2017.pdf · source reference 3989
