Connector End View C567 - Driver Door Side Impact Sensor — OEM Connector End Views · Reference 3992

CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE 2 VPK01 (BN-YE) 22 DRIVER + RPK01 CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE 3 22 (WH-GN) DRIVER - 4 RPK39 (VT-OG) 22 SENSOR - KEYLESS VEHICLE HANDLE

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

FU2Z-14S411-ANA

Pigtail Kit Part Number

Gauge:

WPT-1443

20

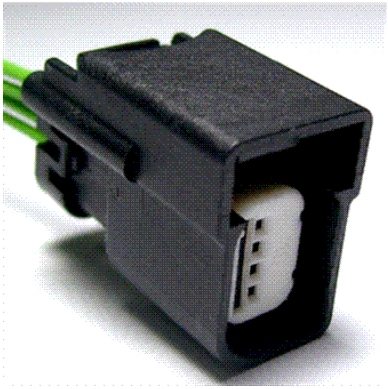

Connector End View C567 - Driver Door Side Impact Sensor — original illustration 1, reference 3992Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

4

Vehicle Uses

Antenna - Keyless Entry

Lamp - Front Turn

Lamp - Side Marker (Rear Fender)

Switch - Keyless Door Handle

CONNECTOR VIEWS > CONNECTOR END VIEW C567 - DRIVER DOOR SIDE IMPACT

SENSOR

Connector:C567

Description

DRIVER DOOR SIDE IMPACT SENSOR

Color
