Connector End View C573 - Interior Front Door Handle Ambient Lighting Lamp LH

OEM Connector End Views

Source configuration appliesSource reference 3,994HTML edition

← Chapter contents Manual collection

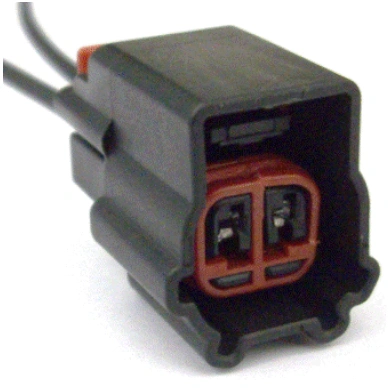

Connector End View C573 - Interior Front Door Handle Ambient Lighting Lamp LH — original illustration 1, reference 3994Original colors & callouts · Select to enlarge

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Motor - Windshield Washer Fluid Pump

Sensor - Side Impact

CONNECTOR VIEWS > CONNECTOR END VIEW C573 - INTERIOR FRONT DOOR

HANDLE AMBIENT LIGHTING LAMP LH

Connector:C573

Description

INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP LH

Color

LT GY

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 3994
