Connector End View C576 - Exterior Mirror Blind Spot (Blis) / Cross Traffic Alert (Cta) Led LH

OEM Connector End Views

Source configuration appliesSource reference 3,997HTML edition

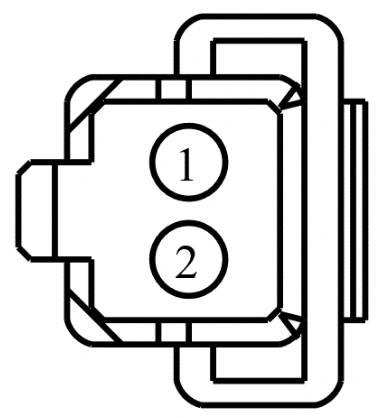

Connector End View C576 - Exterior Mirror Blind Spot (Blis) / Cross Traffic Alert (Cta) Led LH — original illustration 1, reference 3997Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	SENSOR - ALERT
2	* (*)	*	GROUND - COWL SIDE/PILLAR A LEFT

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number 3U2Z-14S411-PFB

WPT-1197 Gauge:

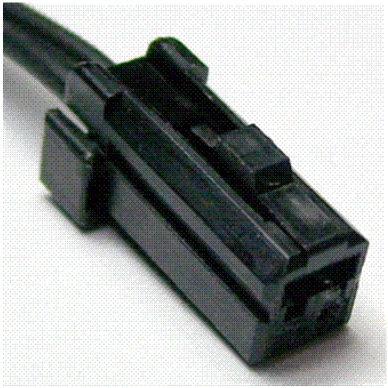

Connector End View C576 - Exterior Mirror Blind Spot (Blis) / Cross Traffic Alert (Cta) Led LH — original illustration 2, reference 3997Original colors & callouts · Select to enlarge

20

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Mirror - Vanity

Sensor - Speed

Switch - Brake Deactivation
