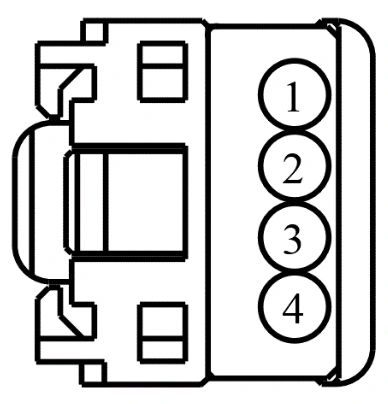

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CPL15 (BU) | 26 | SWITCH - TRIM DOOR LOCK PASSENGER # LOCK | |
1 | CPK19 (BU-GN) | 22 | SWITCH - LOCK DRIVER | |
2 | GD238 (BK-WH) | 20 | GROUND - COWL SIDE/PILLAR A RIGHT | |
2 | RPW05 (GN-BN) | 22 | CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN | |
3 | CPL16 (YE) | 26 | SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK | |
3 | CPK23 (YE-VT) | 22 | SWITCH - HANDLE UNLOCK DRIVER | |
4 | CPL78 (VT) | 26 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION | |
4 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER |
