Connector End View C608 - Passenger Door Window Regulator Motor — OEM Connector End Views · Reference 4000

Available Pigtail Kits

Service Part Number:

3U2Z-14S411-PRC

Gauge:

18

Pin material:

Silver

Cavities:

Pigtail Kit Part Number

4 WPT-1139

Vehicle Uses

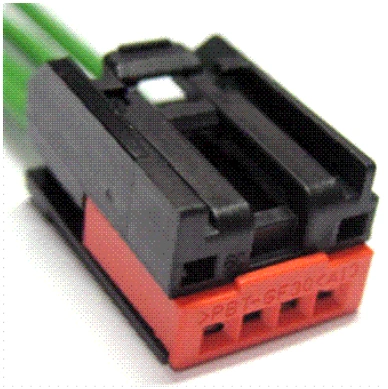

Connector End View C608 - Passenger Door Window Regulator Motor — original illustration 1, reference 4000Original colors & callouts · Select to enlarge

Connector - Audio Input

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Anti-theft

Module - Power Moonroof

Sensor - Steering Wheel Position

Switch - 4x4 Control

Switch - Clutch Pedal Position

Switch - Deck Lid / Lift Gate Ajar

Switch - Door Lock (LH)

Switch - Door Lock (RH)

Switch - Lift Gate Glass Ajar

Switch - Message Center

Switch - Moon Roof/Sun Roof

Transceiver - Passive Anti-Theft (PATS)

CONNECTOR VIEWS > CONNECTOR END VIEW C608 - PASSENGER DOOR WINDOW

REGULATOR MOTOR

Connector:C608

Ford_Mustang_all_2015-2017.pdf · source reference 4000
