Connector End View C609 - Front Door Latch Release Motor RH

OEM Connector End Views

Source configuration appliesSource reference 4,003HTML edition
← Chapter contentsManual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C609 - FRONT DOOR LATCH

RELEASE MOTOR RH

Connector:C609

Description

FRONT DOOR LATCH RELEASE MOTOR RH

Color

BK

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

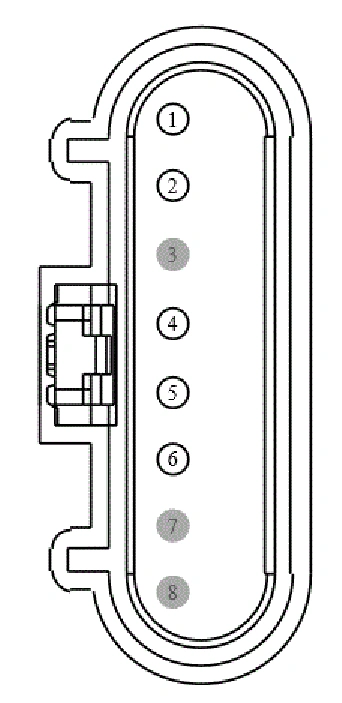

Connector End View C609 - Front Door Latch Release Motor RH — original illustration 1, reference 4003Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Ford_Mustang_all_2015-2017.pdf · source reference 4003
