Connector End View C612 - Front Door Woofer Speaker RH

OEM Connector End Views

Source configuration appliesSource reference 4,005HTML edition

← Chapter contents Manual collection

8

Vehicle Uses

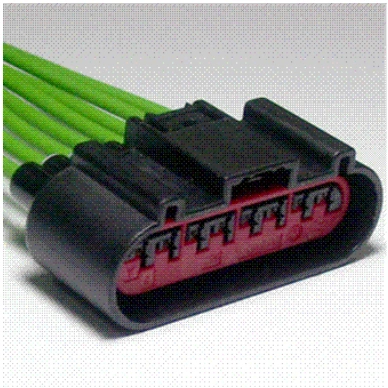

Connector End View C612 - Front Door Woofer Speaker RH — original illustration 1, reference 4005Original colors & callouts · Select to enlarge

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Module - Liftgate

Switch - Door Ajar / Interior Lamp

Switch - Door Lock (LH)

Switch - Door Lock (RH)

Switch - Sliding Door Contact

CONNECTOR VIEWS > CONNECTOR END VIEW C612 - FRONT DOOR WOOFER

SPEAKER RH

Connector:C612

Description

FRONT DOOR WOOFER SPEAKER RH

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

Ford_Mustang_all_2015-2017.pdf · source reference 4005

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
