Connector End View C608 - Passenger Door Window Regulator Motor — OEM Connector End Views · Reference 4002

4 CPW40 (WH) 22 CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # UP CPW13 SWITCH - POWER WINDOW DRIVER # FRONT 4 22 (BN-YE) PASSENGER UP CPW41 CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # 5 22 (GY-YE) DOWN CPW12 SWITCH - POWER WINDOW DRIVER # FRONT 5 22 (GN-OG) PASSENGER DOWN CPW73 6 22 CTRL MOD. - POWER WINDOW GLOBAL DOWN (GN-VT) 7 CPL31 (WH) 22 SWITCH - LATCH PASSENGER # AJAR

Original table alignment retained · Scroll horizontally if needed

Available Pigtail Kits

Service Part Number:

BU2Z-14S411-ASA

Pigtail Kit Part Number

Gauge:

WPT-1209

12 18

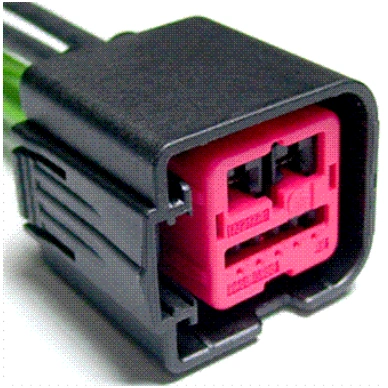

Connector End View C608 - Passenger Door Window Regulator Motor — original illustration 1, reference 4002Original colors & callouts · Select to enlarge

Pin material:

Tin & Silver

Cavities:

7

Vehicle Uses

Motor - Power Window - LH - Front

Motor - Power Window - LH - Rear

Motor - Power Window - RH - Front

Motor - Power Window - RH - Rear
