Connector End View C608 - Passenger Door Window Regulator Motor

OEM Connector End Views

Source configuration appliesSource reference 4,001HTML edition

← Chapter contents Manual collection

Description

PASSENGER DOOR WINDOW REGULATOR MOTOR

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

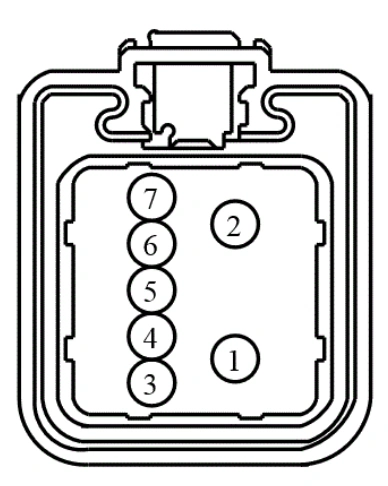

Connector End View C608 - Passenger Door Window Regulator Motor — original illustration 1, reference 4001Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	SBP26 (YE-RD) 14		FUSE - 26 OR CIRCUIT BREAKER
2	GD238 (BK-WH)	14	GROUND - COWL SIDE/PILLAR A RIGHT
3	CBP23 (BN-YE) 22		FUSE - 23 OR CIRCUIT BREAKER

Ford_Mustang_all_2015-2017.pdf · source reference 4001

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
