Check for Terminal Part Numbers

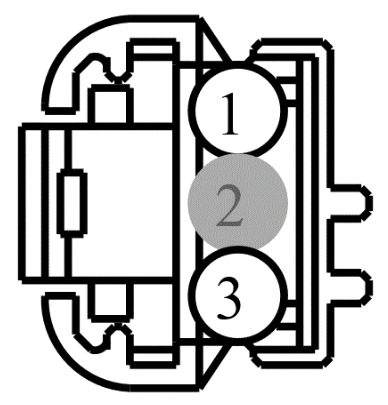

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VME16 (VT-GY) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT MIDDLE + | |
2 | * | * | Not Used | |
3 | RME16 (YE-GY) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT MIDDLE - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-911 | Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses |
