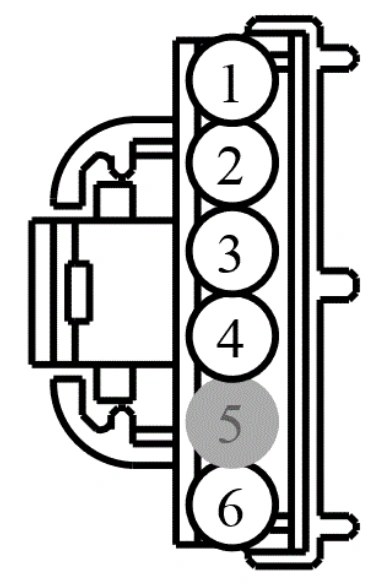

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
1 | RPW05 (GN-BN) | 22 | CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN | |
2 | CPW20 (WH) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # UP | |
2 | CPW13 (BN-YE) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | |
3 | CPW19 (GN) | 26 | SWITCH - POWER WINDOW FRONT PASSENGER # DOWN | |
3 | CPW12 (GN-OG) | 22 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN |
