Connector End View C626 - Exterior Mirror RH

OEM Connector End Views

Source configuration appliesSource reference 4,012HTML edition

← Chapter contents Manual collection

Description

EXTERIOR MIRROR RH

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

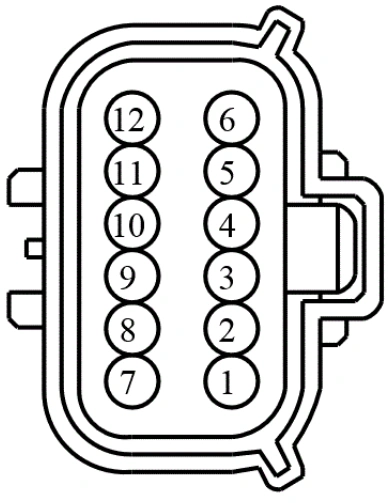

Connector End View C626 - Exterior Mirror RH — original illustration 1, reference 4012Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPM34 (WH-BN)	22	CTRL MOD. - RIGHT MIRROR UP
1	CPM21 (YE-VT)	22	SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS)

Ford_Mustang_all_2015-2017.pdf · source reference 4012
