Connector End View C634 - Exterior Front Door Handle RH

OEM Connector End Views

Source configuration appliesSource reference 4,015HTML edition
← Chapter contentsManual collection

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

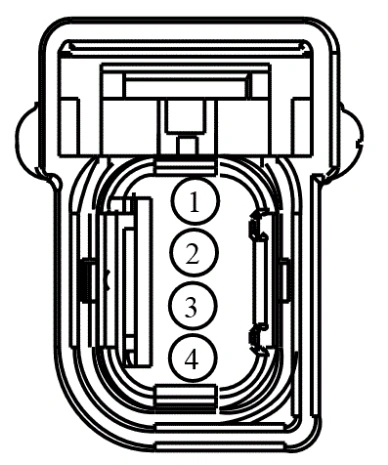

Connector End View C634 - Exterior Front Door Handle RH — original illustration 1, reference 4015Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VPK40 (WH-OG)

22

SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA

2

VPK02 (VT-WH)

22

CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +

3

RPK02 (GY-YE)

22

CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -

4

RPK39 (VT-OG)

22

SENSOR - KEYLESS VEHICLE HANDLE

Ford_Mustang_all_2015-2017.pdf · source reference 4015
