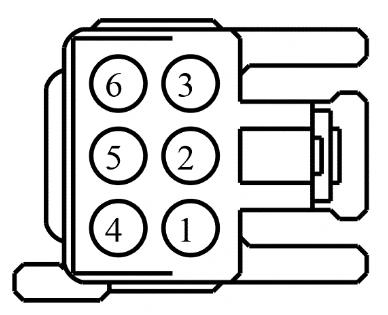

CONNECTOR VIEWS > CONNECTOR END VIEW C649 - INTERIOR FRONT DOOR

HANDLE AMBIENT LIGHTING LAMP RH

Connector:C649

Description

INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP RH

Color

LT GY

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below
