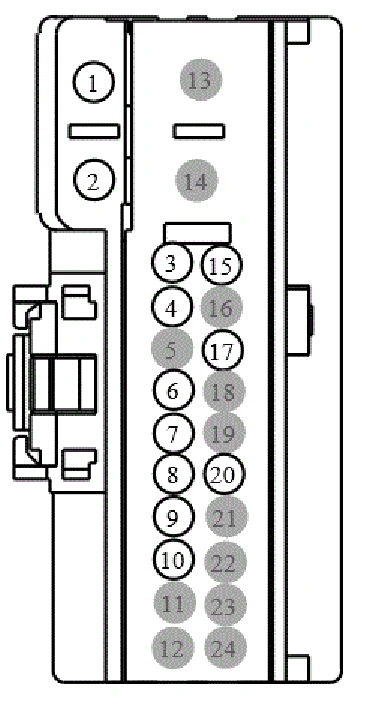

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | SBP26 (YE-RD) | 14 | FUSE - 26 OR CIRCUIT BREAKER | |
2 | GD238 (BK-WH) | 14 | GROUND - COWL SIDE/PILLAR A RIGHT | |
3 | CPL87 (BN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER | |
4 | CLS26 (BU) | 22 | CTRL MOD. - TURN LAMP RIGHT MIRROR + | |
5 | * | * | Not Used |
