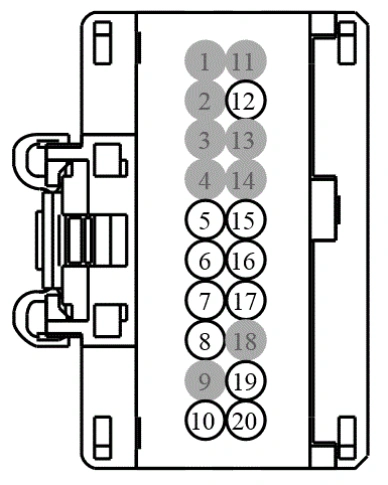

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | * | * | Not Used | |
2 | * | * | Not Used | |
3 | * | * | Not Used | |
4 | * | * | Not Used | |
5 | LPM12 (BU-GY) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + | |
6 | VPM37 (BU-OG) | 22 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | |
7 | CPM34 (WH-BN) | 22 | CTRL MOD. - RIGHT MIRROR UP | |
8 | CPM33 (WH-VT) | 22 | CTRL MOD. - RIGHT MIRROR RIGHT |
