Connector End View C906 - Vanity Mirror Lamp RH

OEM Connector End Views

Source configuration appliesSource reference 4,027HTML edition

← Chapter contents Manual collection

20

Pin material:

Tin (greased)

Cavities:

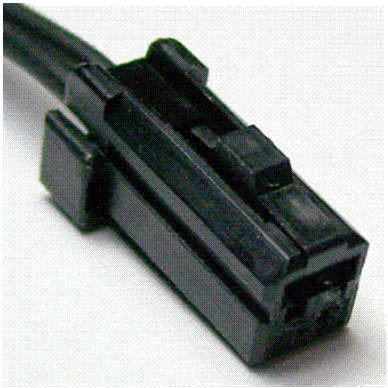

Connector End View C906 - Vanity Mirror Lamp RH — original illustration 1, reference 4027Original colors & callouts · Select to enlarge

2

Vehicle Uses

Mirror - Vanity

Sensor - Speed

Switch - Brake Deactivation

Switch - Brake Pedal Position

Switch - Brake Pressure

Switch - Park Brake

Switch - Speed Control

Switch - Speed Control Deactivation

Switch - Stop Lamp

Switch - Visor

CONNECTOR VIEWS > CONNECTOR END VIEW C906 - VANITY MIRROR LAMP RH

Connector:C906

Description

VANITY MIRROR LAMP RH

Color

Harness

14334/14335

Base Part #

part# N/A

Service Pigtail

See Below
