Check for Terminal Part Numbers

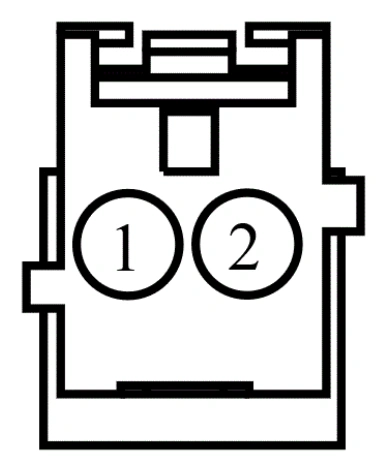

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
2 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
Available Pigtail Kits
Service Part Number:
EU2Z-14S411-TA
Gauge:
Pigtail Kit Part Number
20
WPT-1412
Pin material:
Tin
Cavities:
2
Vehicle Uses
Ford_Mustang_all_2015-2017.pdf · source reference 4028
