CONNECTOR VIEWS > CONNECTOR END VIEW C907 - VANITY MIRROR LAMP LH

Connector:C907

Description

VANITY MIRROR LAMP LH

Color

Harness

14334/14335

Base Part #

part# N/A

Service Pigtail

See Below

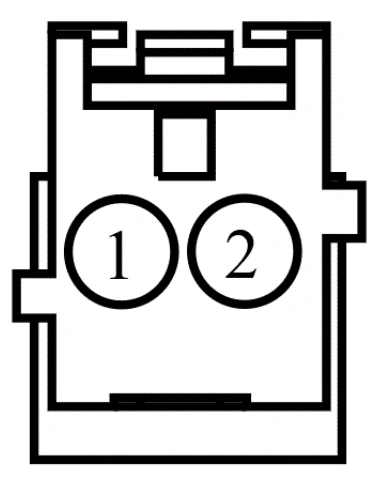

Connector End View C907 - Vanity Mirror Lamp LH — original illustration 1, reference 4029Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier

Ford_Mustang_all_2015-2017.pdf · source reference 4029
