EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED RH

Color

Harness

PIA

Base Part #

part# N/A

Service Pigtail

See Below

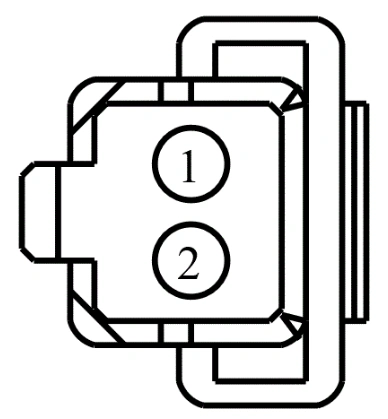

Connector End View C676 - Exterior Mirror Blind Spot (Blis) / Cross Traffic Alert (Cta) Led RH — original illustration 1, reference 4026Original colors & callouts · Select to enlarge

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	SENSOR - ALERT
2	* (*)	*	GROUND - COWL SIDE/PILLAR A LEFT

Available Pigtail Kits
Pigtail Kit Part Number WPT-1197	Service Part Number: 3U2Z-14S411-PFB Gauge:

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1197

Service Part Number:

3U2Z-14S411-PFB

Gauge:

Ford_Mustang_all_2015-2017.pdf · source reference 4026
