Connector End View C649 - Interior Front Door Handle Ambient Lighting Lamp RH — OEM Connector End Views · Reference 4019

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function
1	CLN44 (OG)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED RED +
2	CPL35 (BU)	22	SWITCH - LATCH PASSENGER # UNLOCK
3	CLN45 (GN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED GREEN +
4	RLN44 (BU-BN)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED -
5	CLN46 (BU)	22	CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED BLUE +
6	CPL87 (BN)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER

Available Pigtail Kits

Service Part Number:

Pigtail Kit Part Number

3U2Z- 14S411-JBB

WPT-962

Gauge:

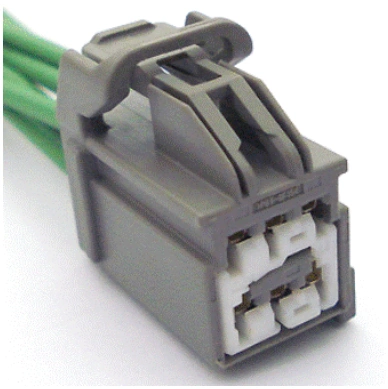

Connector End View C649 - Interior Front Door Handle Ambient Lighting Lamp RH — original illustration 1, reference 4019Original colors & callouts · Select to enlarge

14

Pin material:

Silver

Cavities:

6

Vehicle Uses

Mating Connector WPT-1299

Switch - Gear Shift Select/Neutral Safety

Ford_Mustang_all_2015-2017.pdf · source reference 4019
