Connector End View C644 - Passenger Door Side Impact Sensor

OEM Connector End Views

Source configuration appliesSource reference 4,016HTML edition

← Chapter contents Manual collection

Available Pigtail Kits

Service Part Number:

FU2Z-14S411-ANA

Pigtail Kit Part Number

Gauge:

WPT-1443

20

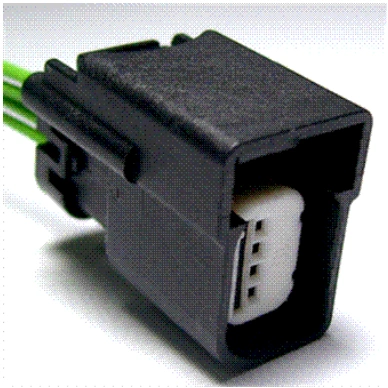

Connector End View C644 - Passenger Door Side Impact Sensor — original illustration 1, reference 4016Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

4

Vehicle Uses

Antenna - Keyless Entry

Lamp - Front Turn

Lamp - Side Marker (Rear Fender)

Switch - Keyless Door Handle

CONNECTOR VIEWS > CONNECTOR END VIEW C644 - PASSENGER DOOR SIDE

IMPACT SENSOR

Connector:C644

Description

PASSENGER DOOR SIDE IMPACT SENSOR

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below
