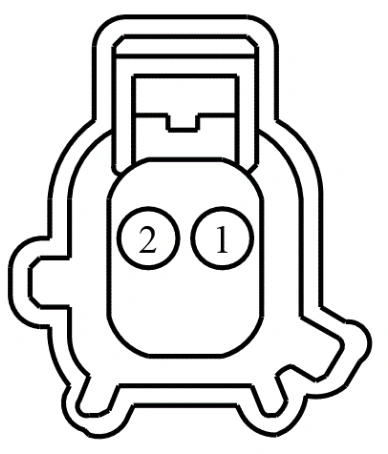

Check for Terminal Part Numbers
Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | VR218 (YE-OG) | 22 | SENSOR - SIDE IMPACT FRONT PASSENGER SIDE | |
2 | RR132 (BU-WH) | 22 | CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-948 | Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses |
