CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK 4 CPL78 (VT) 26 PASSENGER ILLUMINATION CBP23 4 22 FUSE - 23 OR CIRCUIT BREAKER (BN-YE) 5 * * Not Used GD238 6 20 GROUND - COWL SIDE/PILLAR A RIGHT (BK-WH) RPW05 CTRL MOD. - POWER WINDOW SWITCH FRONT 6 22 (GN-BN) PASSENGER RETURN
Original table alignment retained · Scroll horizontally if needed
Available Pigtail Kits
Service Part Number:
Pigtail Kit Part Number 9U2Z-14S411-APA
WPT-1028 Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses
Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
Switch - Power Window - RH - Rear

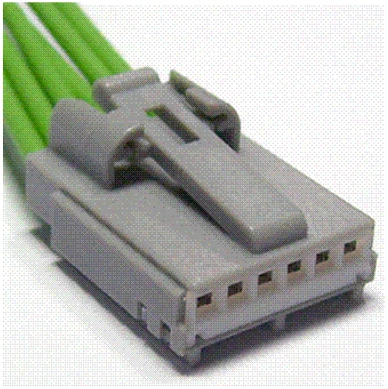

CONNECTOR VIEWS > CONNECTOR END VIEW C626 - EXTERIOR MIRROR RH
Connector:C626
