Connector End View C576 - Exterior Mirror Blind Spot (Blis) / Cross Traffic Alert (Cta) Led LH

OEM Connector End Views

Source configuration appliesSource reference 3,996HTML edition

← Chapter contents Manual collection

Gauge:

14

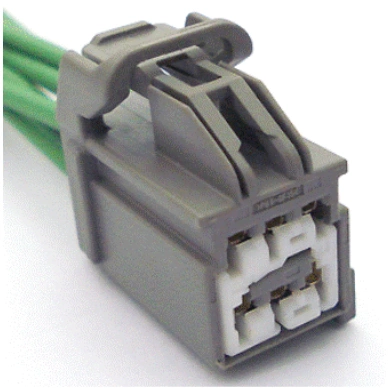

Connector End View C576 - Exterior Mirror Blind Spot (Blis) / Cross Traffic Alert (Cta) Led LH — original illustration 1, reference 3996Original colors & callouts · Select to enlarge

Pin material:

Silver

Cavities:

6

Vehicle Uses

Mating Connector WPT-1299

Switch - Gear Shift Select/Neutral Safety

Switch - Overdrive Cancel

Switch - Power Sliding Door

CONNECTOR VIEWS > CONNECTOR END VIEW C576 - EXTERIOR MIRROR BLIND

SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED LH

Connector:C576

Description

EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED LH

Color

Harness

PIA

Base Part #

part# N/A

Service Pigtail

See Below
