Check for Terminal Part Numbers

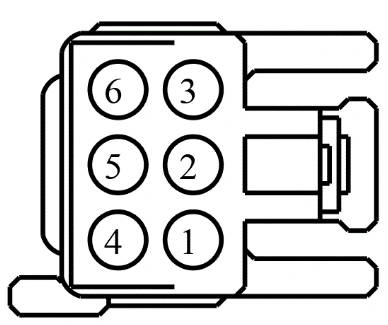

Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
1 | CLN44 (OG) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED RED + | |
2 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER # UNLOCK | |
3 | CLN45 (GN) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED GREEN + | |
4 | RLN44 (BN) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED - | |
5 | CLN46 (BU) | 22 | CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED BLUE + | |
6 | CPL87 (BN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER |
Available Pigtail Kits | |
Pigtail Kit Part Number WPT-962 | Service Part Number: 3U2Z- 14S411-JBB |
