Connector End View C567 - Driver Door Side Impact Sensor

OEM Connector End Views

Source configuration appliesSource reference 3,993HTML edition
← Chapter contentsManual collection

BK

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

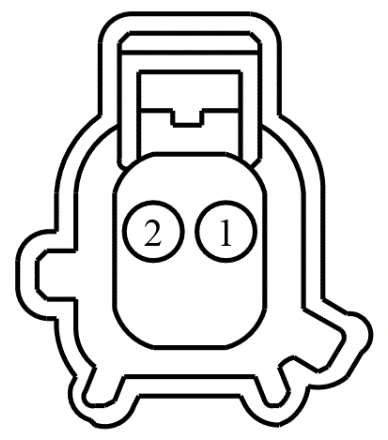

Connector End View C567 - Driver Door Side Impact Sensor — original illustration 1, reference 3993Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VR217 (GY-YE) 22

SENSOR - SIDE IMPACT FRONT DRIVER SIDE

2

RR131 (VT-GN) 22

CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-948

Service Part Number:

3U2Z-14S411-EKB

Gauge:

14

Ford_Mustang_all_2015-2017.pdf · source reference 3993
