Connector End View C543 - Exterior Front Door Handle LH

OEM Connector End Views

Source configuration appliesSource reference 3,991HTML edition

← Chapter contents Manual collection

CONNECTOR VIEWS > CONNECTOR END VIEW C543 - EXTERIOR FRONT DOOR

HANDLE LH

Connector:C543

Description

EXTERIOR FRONT DOOR HANDLE LH

Color

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

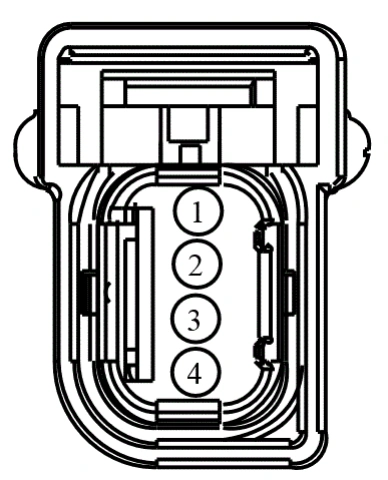

Connector End View C543 - Exterior Front Door Handle LH — original illustration 1, reference 3991Original colors & callouts · Select to enlarge

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK39 (GN-VT) 22		SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA

Ford_Mustang_all_2015-2017.pdf · source reference 3991
